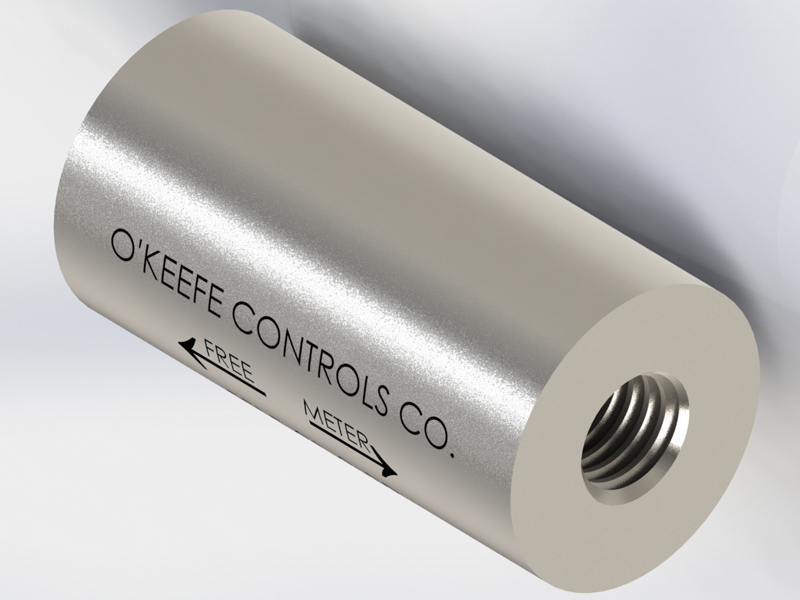

Fixed flow controls are a parallel arrangement of a disk check valve and a precision orifice. Free flow occurs in one direction and metered flow occurs in the opposite direction. Suitable for both liquids and gases the fixed flow controls are available in brass or stainless steel.
1 - 25 of 44 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Parametric Search
Clear Filter

Body Material

Disk Material

Orifice Diameter (in)

CV - Metered Flow

Connection

Part Number

Body Material

Max. Operating Pressure

CV - Metered Flow

CV - Free Flow

Add To Cart/Request Quote
FFOF-4-BR-BR N/A Brass N/A 125 psig N/A 0.00035 N/A 0.15 Add To Cart
Request Quote
FFOF-5-BR-BR N/A Brass N/A 125 psig N/A 0.00061 N/A 0.151 Add To Cart
Request Quote
FFOF-6-BR-BR N/A Brass N/A 125 psig N/A 0.00086 N/A 0.151 Add To Cart
Request Quote
FFOF-7-BR-BR N/A Brass N/A 125 psig N/A 0.0012 N/A 0.151 Add To Cart
Request Quote
FFOF-8-BR-BR N/A Brass N/A 125 psig N/A 0.0015 N/A 0.152 Add To Cart
Request Quote
FFOF-9-BR-BR N/A Brass N/A 125 psig N/A 0.0019 N/A 0.152 Add To Cart
Request Quote
FFOF-10-BR-BR N/A Brass N/A 125 psig N/A 0.0025 N/A 0.153 Add To Cart
Request Quote
FFOF-11-BR-BR N/A Brass N/A 125 psig N/A 0.0028 N/A 0.153 Add To Cart
Request Quote
FFOF-12-BR-BR N/A Brass N/A 125 psig N/A 0.0034 N/A 0.153 Add To Cart
Request Quote
FFOF-13-BR-BR N/A Brass N/A 125 psig N/A 0.0038 N/A 0.154 Add To Cart
Request Quote
FFOF-14-BR-BR N/A Brass N/A 125 psig N/A 0.0043 N/A 0.154 Add To Cart
Request Quote
FFOF-15-BR-BR N/A Brass N/A 125 psig N/A 0.005 N/A 0.155 Add To Cart
Request Quote
FFOF-16-BR-BR N/A Brass N/A 125 psig N/A 0.0055 N/A 0.156 Add To Cart
Request Quote
FFOF-17-BR-BR N/A Brass N/A 125 psig N/A 0.0067 N/A 0.157 Add To Cart
Request Quote
FFOF-18-BR-BR N/A Brass N/A 125 psig N/A 0.0073 N/A 0.157 Add To Cart
Request Quote
FFOF-19-BR-BR N/A Brass N/A 125 psig N/A 0.008 N/A 0.158 Add To Cart
Request Quote
FFOF-20-BR-BR N/A Brass N/A 125 psig N/A 0.0088 N/A 0.159 Add To Cart
Request Quote
FFOF-21-BR-BR N/A Brass N/A 125 psig N/A 0.0096 N/A 0.16 Add To Cart
Request Quote
FFOF-22-BR-BR N/A Brass N/A 125 psig N/A 0.011 N/A 0.161 Add To Cart
Request Quote
FFOF-23-BR-BR N/A Brass N/A 125 psig N/A 0.012 N/A 0.162 Add To Cart
Request Quote
FFOF-24-BR-BR N/A Brass N/A 125 psig N/A 0.013 N/A 0.163 Add To Cart
Request Quote
FFOF-25-BR-BR N/A Brass N/A 125 psig N/A 0.014 N/A 0.164 Add To Cart
Request Quote
FFOF-4-SS-SS N/A 303 SS N/A 125 psig N/A 0.00035 N/A 0.15 Add To Cart
Request Quote
FFOF-5-SS-SS N/A 303 SS N/A 125 psig N/A 0.00061 N/A 0.151 Add To Cart
Request Quote
FFOF-6-SS-SS N/A 303 SS N/A 125 psig N/A 0.00086 N/A 0.151 Add To Cart
Request Quote
