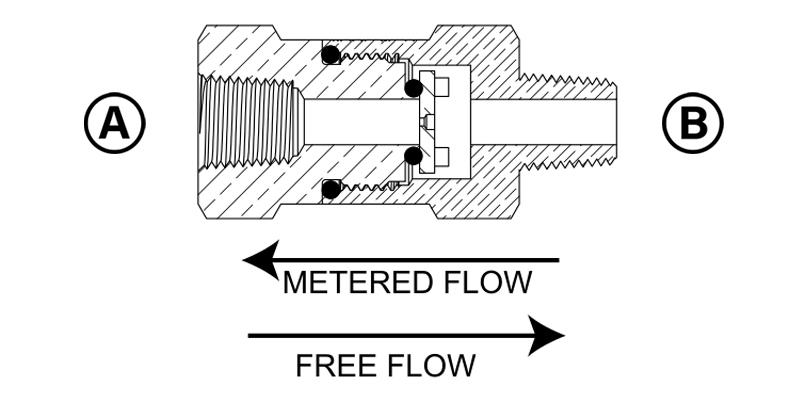

• Fixed flow controls are a parallel arrangement of a disk check valve and a precision orifice. Free flow occurs in one direction and metered flow occurs in the opposite direction. Suitable for both liquids and gases the fixed flow controls are available in brass or stainless steel.
1 - 25 of 463 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
Request Information Compare Items Parametric Search
Clear Filter

Body Material

Disk Material

Orifice Diameter (in)

CV - Metered Flow

Connection

Part Number

Body Material

Max. Operating Pressure

CV - Metered Flow

CV - Free Flow

Add To Cart/Request Quote
DOF-4-BR-BR N/A Brass N/A 125 psig N/A 0.00035 N/A 0.43 Add To Cart
Request Quote
DOF-5-BR-BR N/A Brass N/A 125 psig N/A 0.00061 N/A 0.431 Add To Cart
Request Quote
DOF-6-BR-BR N/A Brass N/A 125 psig N/A 0.00086 N/A 0.431 Add To Cart
Request Quote
DOF-7-BR-BR N/A Brass N/A 125 psig N/A 0.0012 N/A 0.431 Add To Cart
Request Quote
DOF-8-BR-BR N/A Brass N/A 125 psig N/A 0.0015 N/A 0.432 Add To Cart
Request Quote
DOF-9-BR-BR N/A Brass N/A 125 psig N/A 0.0019 N/A 0.432 Add To Cart
Request Quote
DOF-10-BR-BR N/A Brass N/A 125 psig N/A 0.0025 N/A 0.433 Add To Cart
Request Quote
DOF-11-BR-BR N/A Brass N/A 125 psig N/A 0.0028 N/A 0.433 Add To Cart
Request Quote
DOF-12-BR-BR N/A Brass N/A 125 psig N/A 0.0034 N/A 0.433 Add To Cart
Request Quote
DOF-13-BR-BR N/A Brass N/A 125 psig N/A 0.0038 N/A 0.434 Add To Cart
Request Quote
DOF-14-BR-BR N/A Brass N/A 125 psig N/A 0.0043 N/A 0.434 Add To Cart
Request Quote
DOF-15-BR-BR N/A Brass N/A 125 psig N/A 0.005 N/A 0.435 Add To Cart
Request Quote
DOF-16-BR-BR N/A Brass N/A 125 psig N/A 0.0055 N/A 0.436 Add To Cart
Request Quote
DOF-17-BR-BR N/A Brass N/A 125 psig N/A 0.0067 N/A 0.437 Add To Cart
Request Quote
DOF-18-BR-BR N/A Brass N/A 125 psig N/A 0.0073 N/A 0.437 Add To Cart
Request Quote
DOF-19-BR-BR N/A Brass N/A 125 psig N/A 0.008 N/A 0.438 Add To Cart
Request Quote
DOF-20-BR-BR N/A Brass N/A 125 psig N/A 0.0088 N/A 0.439 Add To Cart
Request Quote
DOF-21-BR-BR N/A Brass N/A 125 psig N/A 0.0096 N/A 0.44 Add To Cart
Request Quote
DOF-22-BR-BR N/A Brass N/A 125 psig N/A 0.011 N/A 0.441 Add To Cart
Request Quote
DOF-23-BR-BR N/A Brass N/A 125 psig N/A 0.012 N/A 0.442 Add To Cart
Request Quote
DOF-24-BR-BR N/A Brass N/A 125 psig N/A 0.013 N/A 0.443 Add To Cart
Request Quote
DOF-25-BR-BR N/A Brass N/A 125 psig N/A 0.014 N/A 0.444 Add To Cart
Request Quote
DOF-26-BR-BR N/A Brass N/A 125 psig N/A 0.016 N/A 0.446 Add To Cart
Request Quote
DOF-27-BR-BR N/A Brass N/A 125 psig N/A 0.017 N/A 0.447 Add To Cart
Request Quote
DOF-28-BR-BR N/A Brass N/A 125 psig N/A 0.018 N/A 0.448 Add To Cart
Request Quote
