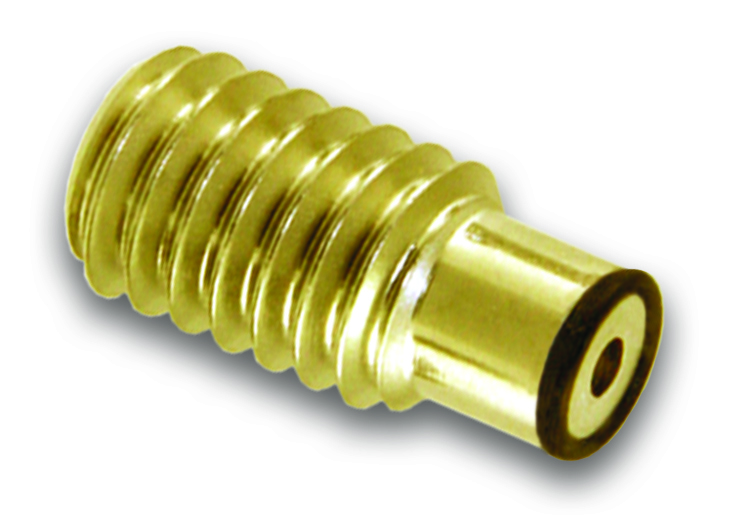

Threaded Insert Check Valve assemblies with nose seals are used to eliminate thread leakage. O-rings are used to seal the nose end of the check valve when pressed against a flat surface. There is a choice of Buna-N (Nitrile) or Viton (Fluorocarbon) seals.

1 - 24 of 24 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Parametric Search
Clear Filter

Body Material

Ball Material

Seal Material

Maximum Operating Pressure (kPa)

KV - Free Flow

Connection

Part Number

Body Material

Ball Material

Maximum Operating Pressure

KV - Free Flow

Add To Cart/Request Quote
ZMNBC-20-0-M3.5-SS-SS N/A 303 SS N/A 440C-SS N/A 7000 kPa N/A 0.008 Add To Cart
Request Quote
ZMNBC-31-0-M5-BR-BN N/A Brass N/A Nitrile N/A 875 kPa N/A 0.017 Add To Cart
Request Quote
ZMNBC-31-0-M5-SS-BN N/A 303 SS N/A Nitrile N/A 875 kPa N/A 0.017 Add To Cart
Request Quote
ZMNBC-31-0-M5-SS-SS N/A 303 SS N/A 440C-SS N/A 7000 kPa N/A 0.017 Add To Cart
Request Quote
ZMNBC-62-0-M6-BR-V N/A Brass N/A Fluorocarbon N/A 875 kPa N/A 0.065 Add To Cart
Request Quote
ZMNBC-62-0-M6-SS-V N/A 303 SS N/A Fluorocarbon N/A 875 kPa N/A 0.065 Add To Cart
Request Quote
ZMNBC-62-0-M6-SS-SS N/A 303 SS N/A 440C-SS N/A 7000 kPa N/A 0.065 Add To Cart
Request Quote
ZMNBC-94-0-M8-SS-SS N/A 303 SS N/A 440C-SS N/A 7000 kPa N/A 0.1 Add To Cart
Request Quote
ZMNBC-94-0-M8-SS-V N/A 303 SS N/A Fluorocarbon N/A 875 kPa N/A 0.1 Add To Cart
Request Quote
ZMNBC-94-0-M8-SS-BN N/A 303 SS N/A Nitrile N/A 875 kPa N/A 0.1 Add To Cart
Request Quote
ZMNBC-94-0-M8-BR-V N/A Brass N/A Fluorocarbon N/A 875 kPa N/A 0.1 Add To Cart
Request Quote
ZMNBC-94-0-M8-BR-BN N/A Brass N/A Nitrile N/A 875 kPa N/A 0.1 Add To Cart
Request Quote
ZMNVC-20-0-M3.5-SS-SS N/A 303 SS N/A 440C-SS N/A 7000 kPa N/A 0.008 Add To Cart
Request Quote
ZMNVC-31-0-M5-BR-BN N/A Brass N/A Nitrile N/A 875 kPa N/A 0.017 Add To Cart
Request Quote
ZMNVC-31-0-M5-SS-BN N/A 303 SS N/A Nitrile N/A 875 kPa N/A 0.017 Add To Cart
Request Quote
ZMNVC-31-0-M5-SS-SS N/A 303 SS N/A 440C-SS N/A 7000 kPa N/A 0.017 Add To Cart
Request Quote
ZMNVC-62-0-M6-BR-V N/A Brass N/A Fluorocarbon N/A 875 kPa N/A 0.065 Add To Cart
Request Quote
ZMNVC-62-0-M6-SS-V N/A 303 SS N/A Fluorocarbon N/A 875 kPa N/A 0.065 Add To Cart
Request Quote
ZMNVC-62-0-M6-SS-SS N/A 303 SS N/A 440C-SS N/A 7000 kPa N/A 0.065 Add To Cart
Request Quote
ZMNVC-94-0-M8-SS-SS N/A 303 SS N/A 440C-SS N/A 7000 kPa N/A 0.1 Add To Cart
Request Quote
ZMNVC-94-0-M8-SS-V N/A 303 SS N/A Fluorocarbon N/A 875 kPa N/A 0.1 Add To Cart
Request Quote
ZMNVC-94-0-M8-SS-BN N/A 303 SS N/A Nitrile N/A 875 kPa N/A 0.1 Add To Cart
Request Quote
ZMNVC-94-0-M8-BR-V N/A Brass N/A Fluorocarbon N/A 875 kPa N/A 0.1 Add To Cart
Request Quote
ZMNVC-94-0-M8-BR-BN N/A Brass N/A Nitrile N/A 875 kPa N/A 0.1 Add To Cart
Request Quote
