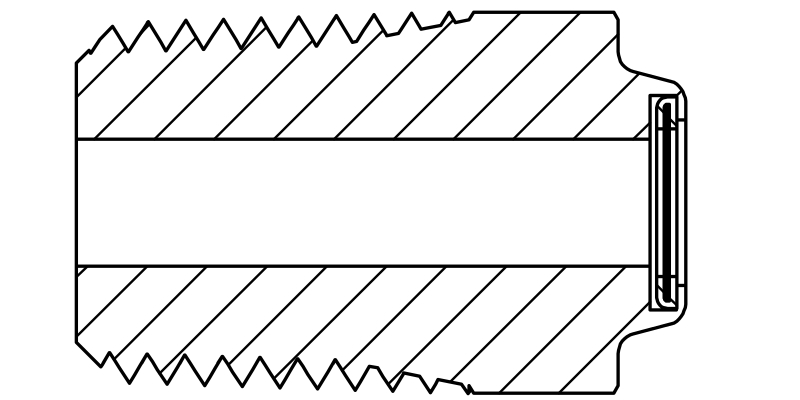

    Fine screen breathers provide an air passage into equipment, enclosures, and pneumatic controls while preventing the ingestion of solid particles. Miniature fine screen breathers are rated at 15, 25 or 100 microns and are available in either brass or stainless steel fittings. Connection sizes are 10-32, 1/8" or 1/4" NPT.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Material

Micron Rating (µm)

Thread

Part Number

Material

CV

Maximum Fitting Pressure

Micron Rating

Thread

N/A Brass N/A 0.009 N/A 100 psig N/A 10 µm N/A 1/8 NPT
N/A Brass N/A 0.025 N/A 100 psig N/A 15 µm N/A 1/8 NPT
N/A Brass N/A 0.055 N/A 100 psig N/A 25 µm N/A 1/8 NPT
N/A Brass N/A 0.09 N/A 100 psig N/A 100 µm N/A 1/8 NPT
N/A 303 SS N/A 0.009 N/A 100 psig N/A 10 µm N/A 1/8 NPT
N/A 303 SS N/A 0.025 N/A 100 psig N/A 15 µm N/A 1/8 NPT
N/A 303 SS N/A 0.055 N/A 100 psig N/A 25 µm N/A 1/8 NPT
N/A 303 SS N/A 0.09 N/A 100 psig N/A 100 µm N/A 1/8 NPT
N/A Brass N/A 0.028 N/A 100 psig N/A 10 µm N/A 1/4 NPT
N/A Brass N/A 0.068 N/A 100 psig N/A 15 µm N/A 1/4 NPT
N/A Brass N/A 0.180 N/A 100 psig N/A 25 µm N/A 1/4 NPT
N/A Brass N/A 0.250 N/A 100 psig N/A 100 µm N/A 1/4 NPT
N/A 303 SS N/A 0.028 N/A 100 psig N/A 10 µm N/A 1/4 NPT
N/A 303 SS N/A 0.068 N/A 100 psig N/A 15 µm N/A 1/4 NPT
N/A 303 SS N/A 0.180 N/A 100 psig N/A 25 µm N/A 1/4 NPT
N/A 303 SS N/A 0.250 N/A 100 psig N/A 100 µm N/A 1/4 NPT
