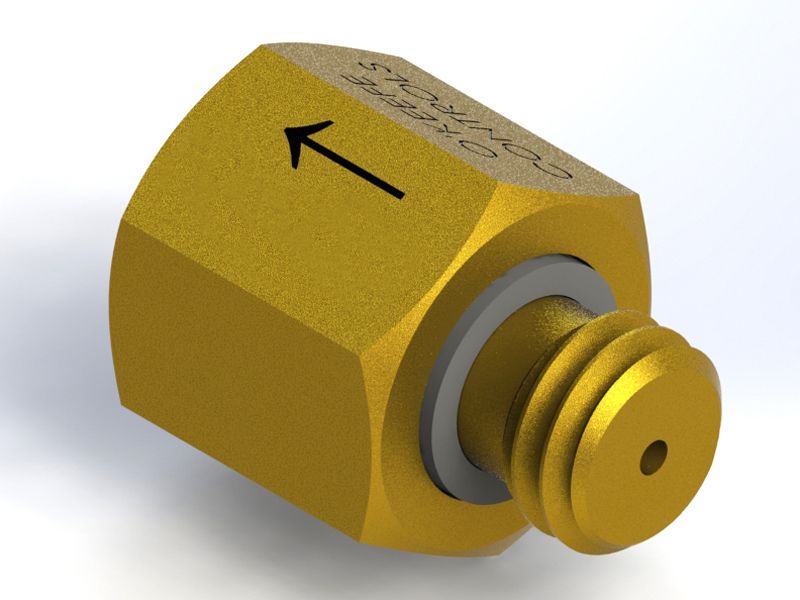

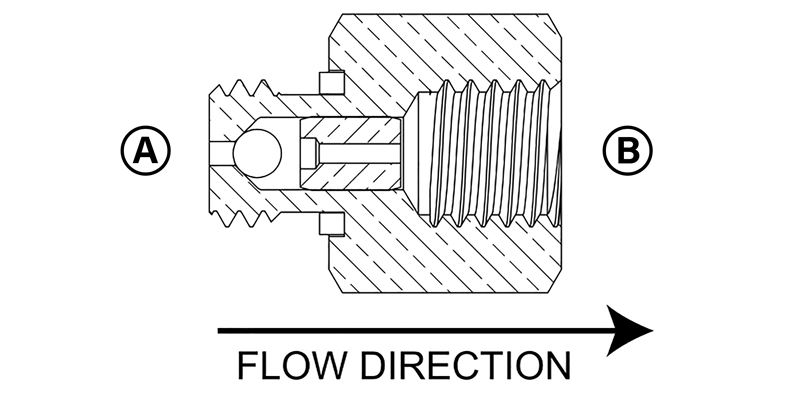

These checked orifices consist of a precision orifice in a series with a ball check valve. The flow rate of the restricted flow is set by the orifice size. Reverse flow is checked by the ball. The assembly provides a selectable flow rate in one direction and checked flow in the opposite direction.
1 - 25 of 141 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
Request Information Compare Items Parametric Search
Clear Filter

Orifice Diameter (in)

Orifice Diameter (mm)

Body Material

Nominal Orifice Size

CV

Connection

Part Number

Orifice Diameter

Body Material

CV

Maximum Fitting PRESSURE

Cracking Pressure

Add To Cart/Request Quote
FMCR-10-0-10/32-BR-BN N/A 0.01 in N/A Brass N/A 0.0025 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-11-0-10/32-BR-BN N/A 0.011 in N/A Brass N/A 0.0028 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-12-0-10/32-BR-BN N/A 0.012 in N/A Brass N/A 0.0034 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-13-0-10/32-BR-BN N/A 0.013 in N/A Brass N/A 0.0038 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-14-0-10/32-BR-BN N/A 0.014 in N/A Brass N/A 0.0043 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-15-0-10/32-BR-BN N/A 0.015 in N/A Brass N/A 0.0055 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-16-0-10/32-BR-BN N/A 0.016 in N/A Brass N/A 0.0067 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-17-0-10/32-BR-BN N/A 0.017 in N/A Brass N/A 0.0073 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-18-0-10/32-BR-BN N/A 0.018 in N/A Brass N/A 0.005 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-19-0-10/32-BR-BN N/A 0.019 in N/A Brass N/A 0.008 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-20-0-10/32-BR-BN N/A 0.02 in N/A Brass N/A 0.009 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-21-0-10/32-BR-BN N/A 0.021 in N/A Brass N/A 0.01 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-22-0-10/32-BR-BN N/A 0.022 in N/A Brass N/A 0.011 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-23-0-10/32-BR-BN N/A 0.023 in N/A Brass N/A 0.012 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-24-0-10/32-BR-BN N/A 0.024 in N/A Brass N/A 0.013 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-25-0-10/32-BR-BN N/A 0.025 in N/A Brass N/A 0.014 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-26-0-10/32-BR-BN N/A 0.026 in N/A Brass N/A 0.016 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-27-0-10/32-BR-BN N/A 0.027 in N/A Brass N/A 0.017 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-28-0-10/32-BR-BN N/A 0.028 in N/A Brass N/A 0.018 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-29-0-10/32-BR-BN N/A 0.029 in N/A Brass N/A 0.019 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-30-0-10/32-BR-BN N/A 0.030 in N/A Brass N/A 0.02 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-10-0-10/32-SS-BN N/A 0.01 in N/A 303 SS N/A 0.0025 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-11-0-10/32-SS-BN N/A 0.011 in N/A 303 SS N/A 0.0028 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-12-0-10/32-SS-BN N/A 0.012 in N/A 303 SS N/A 0.0034 N/A 125 psig N/A Add To Cart
Request Quote
FMCR-13-0-10/32-SS-BN N/A 0.013 in N/A 303 SS N/A 0.0038 N/A 125 psig N/A Add To Cart
Request Quote
